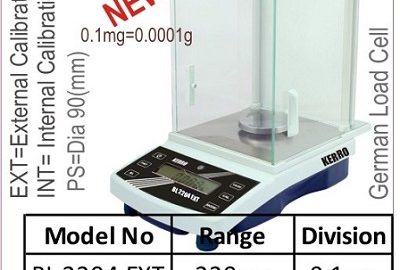

Technical Specifications:
|
Model No. |
BL2204 EXT |
BL2204 INT |
|||
|
Range |
220gm |
220gm |
|||
|
Div (mg) |
0.1mg |
|
0.1mg |
||
|
Readabilty (gm) |
0.0001g |
0.0001g |
|||
|
Repeatability |
< = 0.0002 g |
||||
|
Linearity |
< = 0.0005 g |
||||
|
Pan/Platform Size(inch/mm) |
90mm SST 304 |
110mm |
|
|
|
|
Outline (mm) |
340×210×345mm |
345×215×340mm |
|
||
|
Packing Dimension(mm) |
390×300×450mm |
390×300×450mm |
|
||
|
Glass Windsheild (L×W×H) |
170×180×240 mm (we use the same glass with Mettlor Toledo and |
||||
|
Tare Range |
0-Max Capacity |
|
|
|
|
|
Stable Time |
5s |
|
|
|
|
|
Calibration |
Auto Outside Calibration |
||||
|
Units of Measure |
g, ct, oz, pcs, lb |
|
|
|
|
|
Display |
LCD (white back-light) (L×W) 120×60 mm |
||||
|
Operating Temperature |
5~35*C |
||||
|
Interface |
Rs232C, Printer(dot-matrix printer,thermal printer) |
||||
|
Power Supply |
AC (100-240V 50HZ/60HZ) |
||||
|
More Function |
Counting, Percentage, Full Range Tare, Over-Load Protection, |
||||
|
Automatic Turn-Off, Under Weighing, Low Power Indicator, Last |
|||||
|
Integration Time |
2 / 4 / 8 s |
||||
|
Value Stable Time |
6 s |
||||
|
Print Option |
With Print Option through RS-232 |
|
|
|
|
|
Packaging |
50*40*52 (cm) |
||||
|
Net Weight (per pc) |
6.5kg |
6.8kg |
|||
|
Gross Weight (per carton) |
10.5 Kgs |
10kg |
|||
|
Material |
ABS House 4 mm Thick, ALUMINIUM ALLOY Bottom Board. |
||||
|
Certificate |
CE, ISO, ROHS |
||||
|
Attachment |
manual, adapter, under hook, dust guard, clean clot, brush, |
||||
Note:
We strongly recommend BL-2204INT, because the automatic inside CAL makes the products more stable and quick.
Internal Calibration: The methods and structure are same as METTLER Brand.
If u don’t use it for 10 minutes, then the screen will be darker automatically.
After darker, if u need to use it again, you have to press button “ON” , then the motor will run automatically and screen will be bright again.
Applications:
Best used in Precise Weight measurement, in Research Fields, Schools, Laboratories.
Best Quality.
Assurance of Best Quality with Lowest GUARANTEED Price.
For more info. kindly contact us.
